Automatic wire making machine manufacturer of steel bar upsetting and forging press

Description:

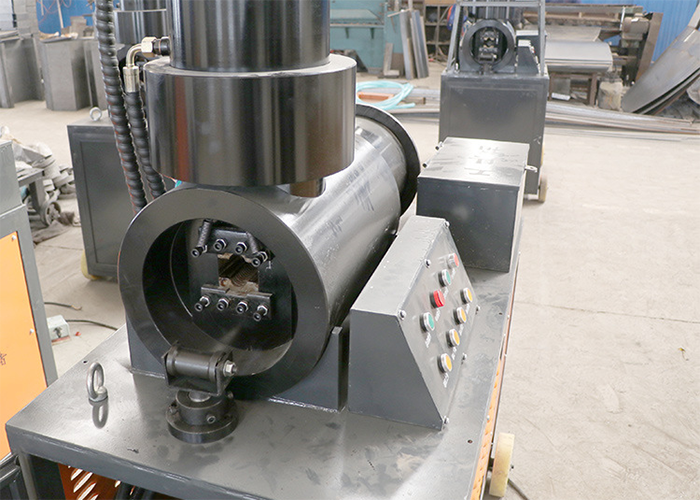

Reinforcement upsetting machines are mainly divided into single-cylinder upsetting machines and double-cylinder upsetting machines, which are mainly used for upsetting projects of ribbed steel bars in construction, and are the key equipment for realizing steel connection. This equipment is used in steel bar connection projects to ensure connection quality. Its main function is to squeeze the threaded steel bars for head construction, increase the diameter of the head, and increase the tensile strength.
The machine is easy to operate, fast, and high in processing quality. This machine tool is mainly used in construction, roads and bridges, high-speed railways, subways, tunnels, and power stations with higher requirements.

Advantage:

Rebar upsetting connection technology is to process the end (head) of the steel bar to upset the pre-abrasive grain to increase the diameter of the processed steel bar (3-5mm), and then use a thread rolling machine to thread the upsetting part. The pipe diameter is steplessly adjustable. When connecting, connect the straight threaded sleeve to the end thread of the steel bar with an ordinary thread. The construction wrench completes the butt joint of the steel bars. The strong straight thread connection technology such as upsetting is stable, and the joint strength is greater than the strength of the material that is the advantage of the steel base.

Operation process:

When the power is turned on, the high-pressure oil pump works immediately, the oil enters the rear working cylinder cavity, and the piston advances to push the movable mold (switch plate, spring, spring plate) to automatically make the steel chuck clamp the steel, and the head is disrupted by the impact steel . At this time, observe the pressure gauge and oil pressure gauge, various steel bars, immediately manipulate the reversing valve to change the direction, so that the pressure oil enters the front cavity, the piston moves backward, the movable mold is immediately restored under the action of the spring, and the steel bars are automatically loosened. At this time, the reversing valve handle loads the workpiece into the middle position. Before normal operation, the machine idling 3-4 times. Winter operating time
It's a bit long. Normally, it runs for 2 minutes without air. The purpose is to remove the air in the oil pipe and the oil tank to prevent the piston from crawling.

use
Professional steel cold heading machine. It is mainly used for the construction of steel bar rolling straight thread, and it is the key equipment to realize the connection of steel bar. It can process ribbed steel with a diameter of 16-32mm.

Features
The professional steel cold heading machine can complete the process from rib stripping to thread rolling at one time. The threaded full-tooth profile is processed with high dimensional accuracy and high mechanical strength. It can process straight thread and reverse thread.
The machine is easy to operate, compact and reliable, and has a unique automatic opening and closing mechanism.
Processing steel bars with a diameter range of 16-32mm.

structure
The professional steel bar cold heading machine is composed of frame, clamp, guide rail, slide plate, cycloidal pinwheel reducer, rib stripping rolling head, feeding mechanism, automatic opening and closing mechanism, stroke limit mechanism, cooling system, electrical control box, and control System and other components.

      China Chongqing QIFU Machinery Co., Ltd. was established in 2013. We have developed and grown in a long history. During this period, we have absorbed outstanding professionals and made continuous efforts to innovate and develop to achieve company diversification.

      After more than ten years of hard work in the market, Chongqing QIFU Machinery Co., Ltd. now covers an area of ​​30,000 square meters and has thousands of employees. Adhering to the corporate vision of "the first brand in China's industry, creating a century-old classic of QIFU", it has now built a headquarters base integrating operation, research and development, production, and sales, and an assembly base integrating precision processing and assembly, with an annual output of 8,000 The production strength of 10,000 pieces of connecting sleeves has formed a complete business chain of research and development, manufacturing, sales, delivery, and service, and established and implemented ISO9001 quality management system certification throughout the business chain.

      We are a well-known manufacturer, supplier and exporter of rebar couplers in Mainland China. It specializes in the production and production of steel couplers for the construction and industrial fields, and has achieved excellent results in the connection, upgrading and fixing technology of the construction industry.

      For high-precision manufacturing, we have established an extensive infrastructure department equipped with high-tech production machines and tools. After operation by our well-trained professionals, we can meet the urgent needs of users within the specified time frame. QIFU adheres to the "three noes" principle of not accepting, not manufacturing, and not exporting defective products, and is committed to providing high-quality products for first-class enterprises and world-class projects to make buildings stronger and safer.

      QIFU people’s integrity management is the cornerstone, technological innovation is the driving force, and information management is the support. We will make every effort to promote the development of the enterprise towards innovation-driven, green environmental protection, and intelligent manufacturing, and continuously improve the comprehensive strength of the enterprise, adopting large-scale, service-oriented, and high-end The road to sustainable development promotes the in-depth integration of design, procurement, construction and other stages to become a market-competitive manufacturer and service provider.

      With a century-old QIFU, quality is king, honesty management, and the rebirth of heritage.
