    Half Grout Sleeve Couplers Tunnel Subway Construction Annealing

    Ask Lasest Price
    Brand Name : Qifu
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10,000 units per month
    Delivery Time : 30 days
    Model Number : Semi Grouting Rebar Splice Sleeves
    Certification : ISO9001
    • Product Details
    • Company Profile

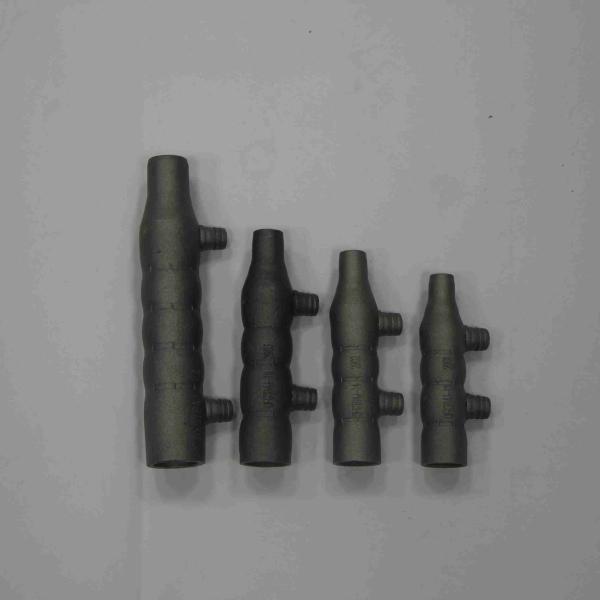

    Half Grout Sleeve Couplers Tunnel Subway Construction Annealing

    Tunnel Subway Construction Annealing Half Grouted Sleeve Rebar Coupler


    Features:


    1. The tensile strength of the connection point is equal to the connection steel bar;
    2. It can process steel bars with a diameter between 16mm and 32mm.
    3. The rib peeling can be completed by stripping the steel bar at one time, and the thread rolling speed is fast;
    4. High degree of automation and easy operation;
    5. The steel ribs are rolled after peeling, the thread shape is good, the precision is high, and the diameter and size are consistent;
    6. The roller has a long service life and the additional cost of the connector is low;
    7. Few roller head specifications, wide steel bar processing range, only one machine tool can process 16mm-40mm threaded steel bars;
    8. Easy to adjust. When rolling bars of different specifications, as long as the pitch is the same, the adjustment can be made without disassembling the rolling head.


    Features:
    The appearance is in the shape of a hollow aid, and its length and wall thickness are calculated according to the applicable scene;
    The installation is convenient, the hoisting of the components is carried out separately from the coagulation operation of the steel bars, that is, the components are hoisted in place first, and then the grouting material is injected to keep the components suspended;
    The friction between the sleeve and the concrete is enhanced, and the surface is extruded by a precision mold to form unevenness, which greatly enhances the bonding strength of the sleeve and the concrete.

    Our advantage:
    1. Complete logistics system: Our production base has a targeted transportation team to ensure customer delivery needs;
    2. National certification authority test report, won the national ISO9001 quality system certification;



    Standards:DIN, ANSI, GB, JIS, BSW
    Material:medium carbon steel
    Service:After-sales technology
    Payment:general T/T or LC, according to the order quantity
    Transport packaging:carton or wooden box
    Certificate:Ce, ISO9001, Aci-318, BS4449, Dcl, etc.
    Tensile test:100% Bar Break outer coupler
    Delivery time:within 10 days (if there is stock)

    Parameters of semi-grouting sleeve-Building
    Grout Sleeve ModelBar DiameterConnecting bar diameterOuter DiameterLengthMinimum hole diameter of steel bar insertion opening at grouting end of sleeveGrout Hole Center PositionThe Hole Location Of The Outflow SlurryGrout end connecting steel bar Twisting depthInternal thread nominal diameterInternal thread pitchInternal thread profile angleInternal thread depth
    GTB4J-12Φ12Φ12/Φ103414023289496 -11612.6275°14
    GTB4J—14Φ14Φ14/Φ12361562530110112 -13214.6275°15
    GTB4J-16Φ16Φ16/Φ14391742830126128 -14816.62.575°18
    GTB4J-18Φ18Φ18/Φ16411932935142144-16418.52.575°21
    GTB4J-20Φ20Φ20/Φ18432113040!58160-18020.52.575°23
    GTB4J-22Φ22Φ22/Φ20462303240174176-19622.52.575°25
    GTB4J-25Φ25Φ25/Φ22522603640198200-22025.7375°28
    GTB4J-28Φ28Φ28/Φ25602924340228224-24428.7375°31
    GTB4J-32Φ32Φ32/Φ28663304740263256-27532.7375°35
    Note: 1. The bottom dimension in the table is the value of the sleeve raw material that meets the mechanical performance requirements of No. 45 steel in GB/T699-2015 (the measured yield strength and ultimate strength should not be less than J355-2015 Rebar Sleeve Grouting Connection Application Technology The standard specified in the regulations), the minimum size that can be selected when the sleeve manufacturer has a good level of quality control.
    2. The minimum size of the measured sleeve should be measured in at least two directions, and the minimum value should be used for judgment.
    3. The customer's special customized sleeve must meet the mechanical performance parameters (strength requirements) of the sleeve as a premise, and the size can be flexibly controlled.

    Parameters of semi-grouted sleeves- bridge connection
    Grout Sleeve ModelBar DiameterOuter DiameterInner DiameterLengthGrout Hole Center PositionThe Hole Location Of The Outflow SlurryOn-site Construction Reinforcement Insertion DepthFactory Installed Rebar Insertion Depth
    GTB4J-32Φ327053394289496 -11612.6
    GTB4J-36Φ36785744030110112 -13214.6
    GTB4J-40Φ40896548030126128 -14816.6

    about Us:
    Chongqing Qifu not only owns Chinese production lines, but also CNC production lines. Chongqing Qifu has been engaged in steel connection since 1987, including R&D and manufacturing. At the same time, we have more than 400 field workers. We used our products on construction sites, contracted projects, and experienced these projects ourselves. Therefore, we have professional experience in field operation, connection speed, connection effect, connection quality, manual application, material application and overall cost.
