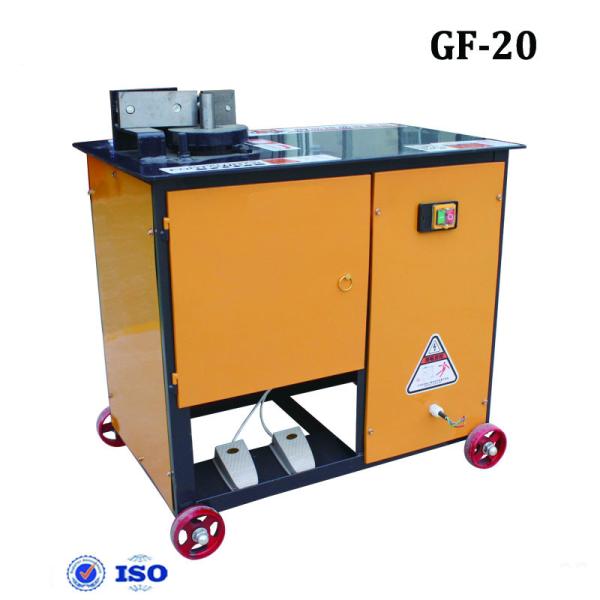

    32mm Automatic Steel Bar Bending Machine Iso 9001/ 2000 Ce

    Ask Lasest Price
    Brand Name : Qifu
    Model Number : GF20 GF25 GF28 GF32 Customized
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 10,000 units per month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    32mm Automatic Steel Bar Bending Machine Iso 9001/ 2000 Ce

    Wholesale 32mm ISO 9001:2000, CE Hoop Bender Stirrup Bending Machine


    product features:
    1. Adopts the 10mm thicken top plate and high rigidity disk of iron, more durable.
    2. Equipped with international standard copper motor, ultra-high hardness accessory and adjustable fender.
    3. Adopt 6mm thick top plate,high rigidity disk,adjustable stylobate,the bending angle of more efficient.


    Features:


    01. Pure copper motor. Strong, stable and durable 100% pure copper wire, high speed, high efficiency and low noise.
    02. The gear is made of cast steel and has been quenched and forged 6 times.
    03. Bend. Various geometric shapes can be produced.
    04. The working plate material is processed by quenching and forging process. High-speed bending function ensures work efficiency and simple operation.
    05. The simple wiring diagram composed of AC contactor and travel switch is easy to check and fix.
    06. Various angles can be adjusted through the design of the travel switch, with high accuracy.
    07. The machine has a built-in Delixi limit switch and AC contactor.


    Certification:ISO 9001:2000, CE
    Automation:Manual
    Suitable for:Copper, Carbon Steel, Stainless Steel

    product nameSteel bending machine
    OriginChongqing, China
    Coloras shown
    Voltage380V/customized
    Power1500W
    Bending speed3-5s
    Bending angle​

    0-360 ℃

    ​Bending diameterGrade 3 ribbed steel bar 6-40mm
    Applicable industriesenergy and mining, machinery repair shops, manufacturing plants, construction engineering, building materials stores

    32mm Automatic Steel Bar Bending Machine Iso 9001/ 2000 Ce


    ModelMotor powerMotor speedBending diameterBending speedVoltageBending angleWeightDimension
    (mm)
    GF25-A
    (auto/CNC)
    3KW1440r/min4-22mm18-30r/min
    adjustable
    110V/
    220V/
    380V/
    415V/
    customized
    0-180°150kgs500x800x850
    GF28
    (auto/CNC)
    3KW8-32mm225kgs550x850x770
    GF32
    (auto/CNC)
    3KW4-32mm220kgs720x700x800
    GF32-A
    (auto/CNC)
    3KW4-32mm220kgs720x700x750
